J&M JMAA-1800HR06 - PERF 180W 2-CH AMP KIT 06-13 HARLEY ROADGLIDE

Chargement...Chargement...
-33%
PERF 180W 2-CH AMP KIT 06-13 HARLEY ROADGLIDE JMAA-1800HR06

Prix Normal : 5 699,00 Dh

Votre Prix :3 799,90 Dh

Economie : 1 899,10 Dh - 33%

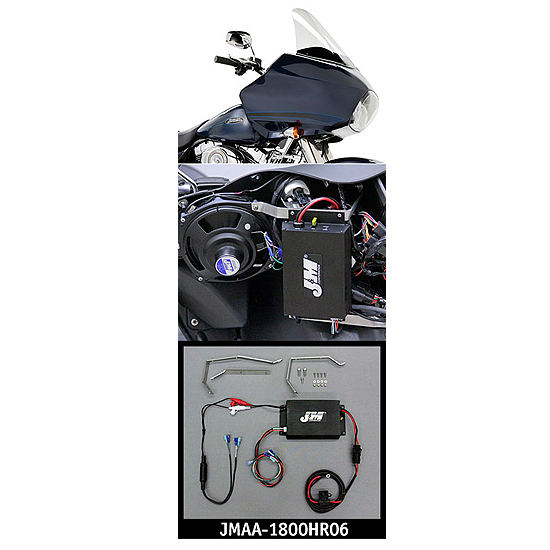

This exciting new J&M 2-channel 180w fairing speaker amplifier kit has been design specifically for use in the 2006-2013 Harley® RoadGlide fairing with the Harley HK radio. (may also work with the 1998-2005 Harley RoadGlide fairing/radio, under the certain conditions below)

Disponibilité : Sur commande
Evaluation :
  • PERF 180W 2-CH AMP KIT 06-13 HARLEY ROADGLIDE JMAA-1800HR06
  • /images/products/JMAA-1800HR06-1.jpg
  • /images/products/JMAA-1800HR06-2.jpg
Description


This is a full range class D amplifier and is spec’d at 90watts RMS per channel X2 channels, (180w total) driven continuous into a 2 ohm load @ 14.4vdc.

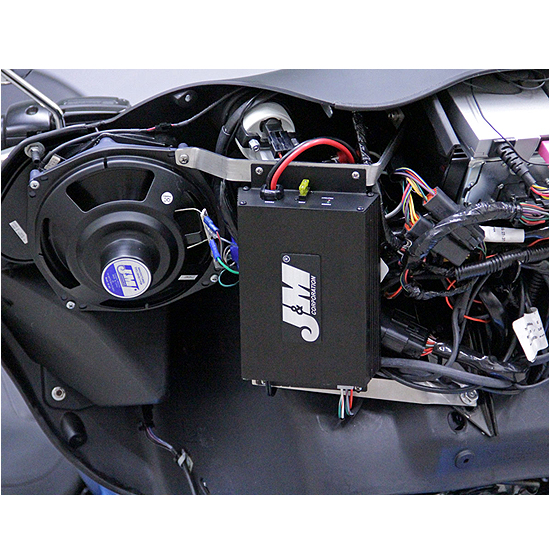

Amplifier mounts to the custom made metal mounting bracket system.

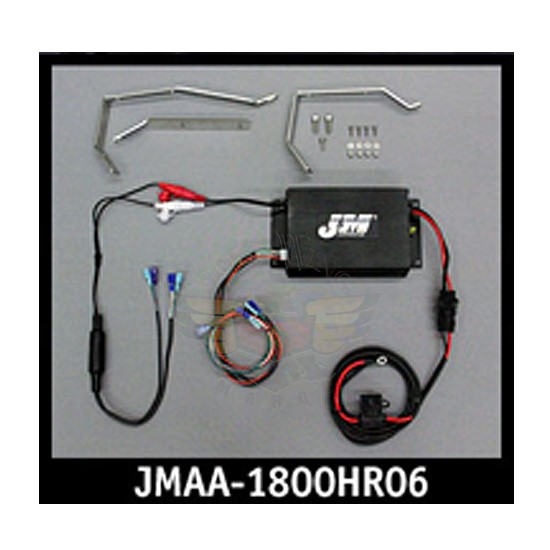

Custom made plug-n-play wiring harnesses are included with this amplifier kit, top quality heavy gauge power/ground wires are used for the fused battery connection, along with all necessary mounting hardware & complete installation/operation instructions.

Amplifier itself measures 6 1/2” X 4 ¾“ X 1 ¾”.

IMPORTANT NOTE : Some 1998 thru 2005 model RoadGlides require the replacement of the factory grill assembly/speaker adapters in order for the J&M 180w amp kit and/or 7.25 speaker kit to be installed. It will be necessary to remove the outer fairing and inspect the factory installed grill/adapter assemblies to determine if they need to be replaced.

The early style assemblies can be identified by the method of attachment to the inner fairing. If the screws attaching the speaker go completely through the grill/adapter and into the inner fairing mounting bosses you have the early style assemblies and they will need to be replaced with the later style factory grill/adapter assemblies and mounting hardware listed below.

The later style grill/adapter utilizes independent hardware to attach it to the inner fairing then the speaker is attached to the grill/adapter with 4 additional screws. If you have the later style assemblies, the J&M 250w amp kit and/or 7.25 speaker kit will fit with no additional parts or hardware needed.

Téléchargements


icon__JMAA-1800HR06---InstallManual02-2013.pdfTélécharger
